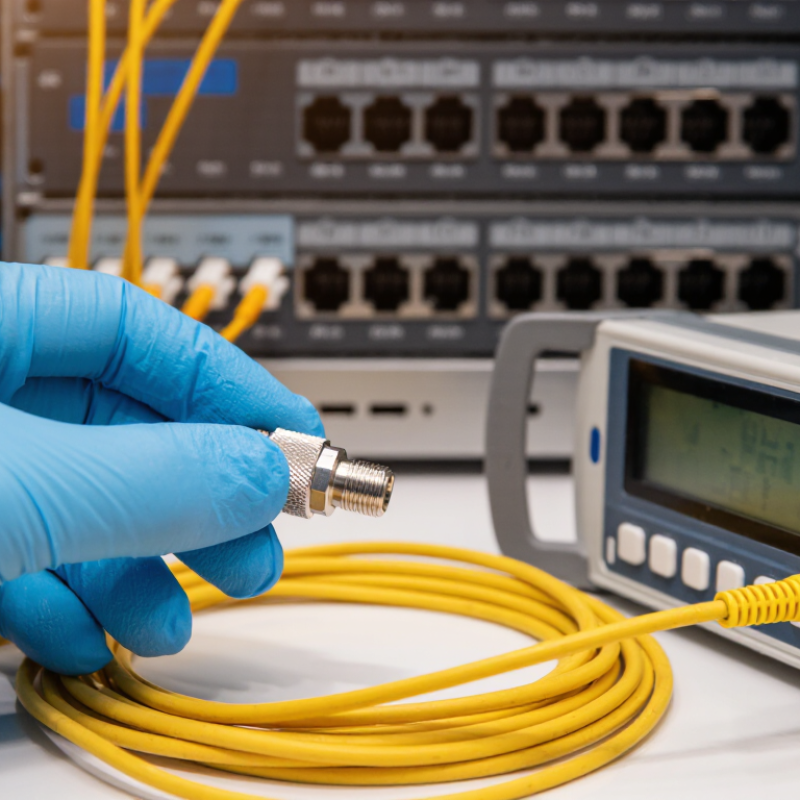

In modern fiber networks, excessive optical power can be as harmful as insufficient power. An Optical Attenuator helps engineers reduce signal strength without replacing the transmitter or redesigning the entire link. This small passive device supports safer testing, balanced receivers, and more stable system performance.
Dr. Govind P. Agrawal, a respected fiber-optics researcher, has emphasized a practical principle: “Power control is part of reliable fiber communication.” This idea explains why attenuators remain important in data centers, telecom laboratories, and wavelength-division multiplexing systems. A technician may install one between a laser source and a receiver. The goal is simple. Protect the receiver.
Different applications require different solutions. Fixed attenuators provide a predictable loss, such as 3 dB or 10 dB. Variable models allow technicians to adjust power during commissioning. In a crowded rack, a properly selected connector type can prevent unnecessary adapters and unstable readings. Clean end faces matter, too. Tiny dust particles can distort measurements.
Yet attenuation is not automatically beneficial. Too much loss can weaken the signal and reduce the system margin. That mistake is easy to make during hurried troubleshooting. Engineers should check wavelength, connector compatibility, return loss, and power limits before installation. Manufacturer data remains essential.
The decision is rarely dramatic. It is careful engineering.
An Optical Attenuator may look insignificant beside amplifiers and transceivers. Still, it often determines whether a link behaves predictably. Real networks are imperfect. Good design accepts that reality and manages it deliberately.
What Is an Optical Attenuator?
An optical attenuator is a passive component that deliberately reduces optical power in a fiber link. It is measured in decibels, such as 3 dB or 10 dB. Fixed attenuators provide stable loss, while variable models allow controlled adjustment during testing. They may use absorption, reflection, or a small air gap to weaken the signal.
The purpose is practical. A strong signal can overload a receiver, distort measurements, or reduce network stability. Technicians install an attenuator near the receiver or test instrument, then verify the result with an optical power meter. This is especially useful in short links, laboratory setups, and high-power single-mode systems.
Small details matter. Connector cleanliness can change the measured loss.
Network growth makes power control more important. The Cisco Annual Internet Report 2018–2023 projected 5.3 billion internet users and 29.3 billion connected devices by 2023. More connections do not automatically mean better optical performance. ITU-T G.652.D specifies maximum fiber attenuation values around 0.4 dB/km at common operating wavelengths, but real links also include connectors, splices, splitters, and bends. A field engineer should calculate the complete loss budget before adding attenuation. Guessing is risky. An attenuator can solve overload, yet an unnecessary one may leave the receiver below its sensitivity range. Calibration records and manufacturer-neutral test data remain essential.
How Does an Optical Attenuator Control Light?
An optical attenuator controls light by reducing optical power before it reaches a receiver. It works like a carefully adjusted dimmer for a fiber signal. A fixed attenuator uses absorptive material or controlled reflection. A variable optical attenuator changes its loss through a movable shutter, liquid crystal, or MEMS mechanism. The basic relationship is simple: Pout = Pin × 10^(-A/10), where A represents attenuation in decibels. A 10 dB setting allows roughly one-tenth of the input power to pass.
In practical testing, technicians increase attenuation until the receiver operates near its target power range. Too much power can overload the photodiode. Too little power raises bit errors and weakens the link margin. This control matters as networks expand. ITU’s Facts and Figures 2023 reported 5.4 billion people online, while Cisco’s Annual Internet Report estimated 29.3 billion connected devices by 2023. More connections create greater variation in transmitted power and distance.
A reflective attenuator sends part of the light away from the receiver. An absorptive type converts unwanted optical energy into heat. The choice is not always obvious. Reflections can disturb sensitive measurements, especially in short links. I have also seen small connector contamination produce readings that look like attenuation failure. That assumption is often wrong. Clean connectors, calibrated meters, and stable temperature checks remain essential. Industry test guidance, including IEC 61280-4-2 practices, supports measuring insertion loss and return loss separately.
Why Use an Optical Attenuator? — How Does an Optical Attenuator Control Light?
An optical attenuator reduces the power of a light signal by introducing a controlled loss. This chart assumes a constant input power of 1 mW, equivalent to 0 dBm. For an attenuation value of A dB, the output power is calculated as Pout = Pin × 10−A/10. Higher attenuation allows optical receivers and measurement equipment to avoid overload while preserving the signal path.
Why Is Optical Power Reduction Necessary?
Why Use an Optical Attenuator?
Why Is Optical Power Reduction Necessary?
Optical receivers work within a defined power range. Excessive light can overload the photodiode or distort measurement results. An optical attenuator reduces signal power before it reaches sensitive equipment. This helps prevent saturation and preserves measurement accuracy during fiber testing.
Power reduction also supports realistic network simulations. A short fiber link may deliver much stronger light than a long deployed route. Adding controlled attenuation can imitate distance, connectors, and other losses. It helps engineers check whether receivers maintain stable performance under different conditions. However, attenuation is not automatically beneficial. Too much reduction may hide faults or push the signal below the receiver’s sensitivity threshold. That mistake is easy to make.
Tips: Check the transmitter output, receiver limits, and required attenuation before testing. Use calibrated instruments when possible. Clean every connector. Tiny contamination can create unexpected loss and confuse the results. Record the attenuation value and test conditions for reliable comparisons.
Where Are Optical Attenuators Used?
Optical attenuators are used wherever light levels must be controlled without interrupting an optical link. In data centers, technicians place them between transceivers, patch panels, and test instruments. They prevent receiver overload during commissioning. This matters as traffic keeps rising. Cisco’s Annual Internet Report projected global IP traffic would reach 396 exabytes per month by 2022. More traffic means denser links and tighter power budgets. Attenuators also help balance wavelengths in WDM systems, especially when channels travel different distances.
Telecom engineers use attenuators in fiber-to-the-home networks, central offices, and laboratory test benches. A controlled loss can imitate a long cable run or a damaged connector. It helps verify receiver sensitivity, optical margin, and alarm thresholds. ITU’s Facts and Figures 2023 reported 5.4 billion people were online worldwide. That growth increases pressure on access networks, although the exact attenuator requirement still depends on split ratios, fiber length, and optics. I would not treat every unstable link as an attenuator problem. Dirty connectors and incorrect power measurements are common causes.
Tips: Begin with the smallest required attenuation. Measure transmit and receive power with a calibrated meter. Check the connector end faces before testing. Fixed attenuators suit repeatable setups, while variable models support troubleshooting. A practical mistake is leaving a test attenuator installed after maintenance. Label it clearly. It sounds obvious, but field teams still miss it.
